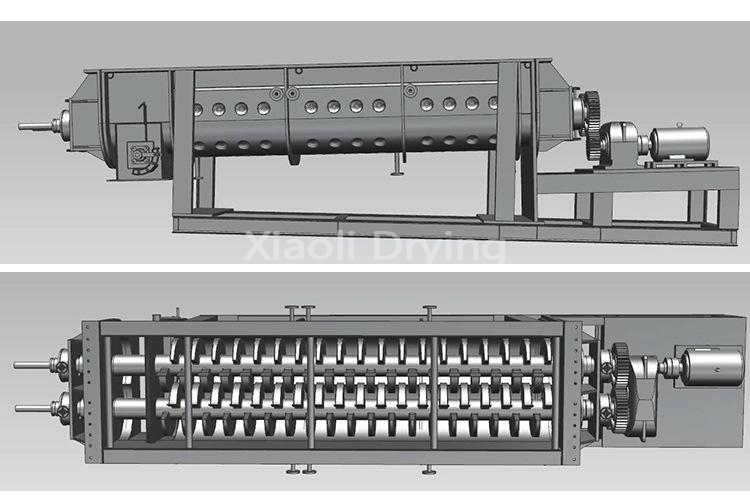

The KJG Series Hollow Paddle Dryer is a precision industrial drying solution engineered for pharmaceutical powders processing. Featuring adjustable drying time, 2.7 m² heat transfer area, and indirect heating technology, it delivers gentle, uniform drying for heat-sensitive pharmaceutical materials.
| Model | KJG-2.7 Hollow Paddle Dryer |
| Heat Transfer Area | 2.7 m² |
| Effective Volume | 0.06 m³ |
| Revolution | 15-30 r.p.m |
| Power | 2.5 kW |
| Width of Dryer Body (A) | 306 mm |
| Total Width (B) | 736 mm |
| Length of Dryer Body (C) | 1,956 mm |
| Total Length (D) | 2,972 mm |
| Distance Inlet to Discharge (E) | 1,752 mm |
| Height in Center (F) | 380 mm |
| Total Height (G) | 762 mm |
| Steam Inlet (N) | (2) 3/4" |
| Water Outlet (O) | (2) 3/4" |
The KJG Series Hollow Paddle Dryer is ideal for pharmaceutical powders requiring gentle, controlled drying. Typical applications include: API (Active Pharmaceutical Ingredient) powder drying, pharmaceutical intermediate drying, excipient powder processing, and heat-sensitive pharmaceutical compound dehydration. The indirect heating mechanism prevents product degradation while maintaining consistent quality.
The KJG-2.7 Hollow Paddle Dryer combines hollow paddle indirect heating with adjustable drying time for optimal pharmaceutical powder processing. Factory-tested and built to pharmaceutical industry standards, it delivers reliable performance for precision drying applications.
