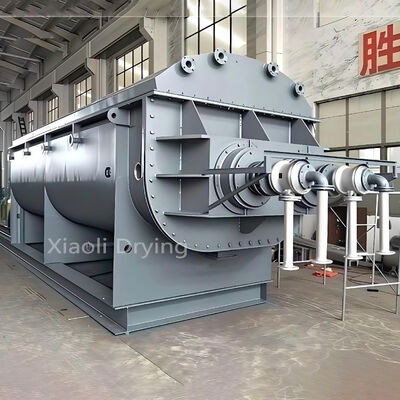

The KJG-52 Hollow Paddle Dryer is an industrial advanced horizontal paddle type drying machine featuring superior heat transfer performance. With 52 m² heat transfer area, 3.96 m³ effective volume, and 30 kW drive system, it is engineered for maximum throughput in the most demanding large-scale industrial drying applications.
| Model | KJG-52 Hollow Paddle Dryer |
| Heat Transfer Area | 52 m² |
| Effective Volume | 3.96 m³ |
| Revolution | 10-20 r.p.m |
| Power | 30 kW |
| Width of Dryer Body (A) | 1,474 mm |
| Total Width (B) | 1,854 mm |
| Length of Dryer Body (C) | 5,258 mm |
| Total Length (D) | 8,306 mm |
| Distance Inlet to Discharge (E) | 4,954 mm |
| Height in Center (F) | 1,066 mm |
| Total Height (G) | 2,032 mm |
| Steam Inlet (N) | (2) 1-1/2" |
| Water Outlet (O) | (2) 1-1/2" |
The KJG-52 horizontal paddle type drying machine delivers industrial advanced drying with superior heat transfer for large-scale production. Typical applications include: bulk chemical powder and intermediate drying, mineral concentrate and tailings processing, large-volume industrial sludge dewatering, fertilizer and agrochemical granule drying, food processing by-product recovery, and biomass material dehydration. The massive 3.96 m³ volume makes it ideal for operations requiring maximum single-batch throughput.
The KJG-52 combines industrial advanced design with exceptional heat transfer performance in a horizontal paddle type configuration. With 52 m² heat transfer area, it represents the ultimate large-scale indirect drying solution for manufacturers requiring maximum capacity and proven reliability.
