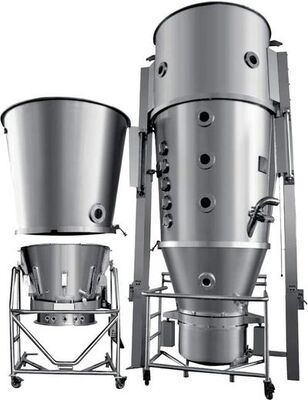

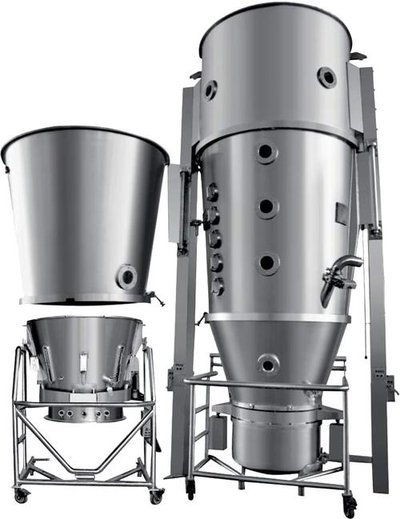

The FL Series Granulator Dryer is a GMP-compliant pharmaceutical drying machine constructed entirely from 304 stainless steel. Designed for granule drying in pharmaceutical manufacturing environments, it delivers precise moisture control, uniform drying performance, and full compliance with GMP hygiene standards. The FL Series is widely used for drying wet granules in tablet and capsule production lines, ensuring consistent batch quality and efficient throughput.
| Item | 3 Unit |
| Container Volume | 12L |
| Container Diameter | 300mm |
| Min Capability | 1.5kg |
| Max Capability | 4.5kg |
| Fan Capacity | 1000m³/h |
| Fan Pressure | 375mmH₂O |
| Fan Power | 3kw |
| Steam Expenditure | 15kg/H |
| Compressed Air Expenditure | 0.9m³/Min |
| Weight Of The Main Body | 500kg |
| Steam Pressure | 0.3-0.6MPa |
| Temperature | Room Temperature To 120℃ |
| Working Time | 45-90 Min |
| Field | ≥99% |
| Noise | ≤75db(A) |
| Size(LxWxH) | 1.0x0.6x2.1m |
Pharmaceutical granule drying, tablet granulation production lines, capsule filling preparation, Chinese medicine extract drying, food and nutraceutical granule processing, chemical powder drying.
With over 15 years of experience in pharmaceutical equipment manufacturing, we provide complete IQ/OQ/PQ documentation, CE certification, and lifetime technical support. Each machine undergoes rigorous factory acceptance testing (FAT) before shipment to ensure optimal performance at your facility.
