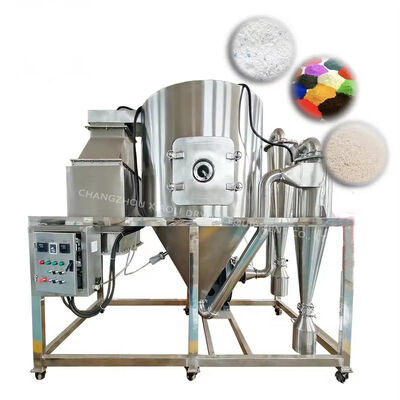

LPG-150 High Speed Centrifugal Spray Dryer Machine For Cow Blood Powder

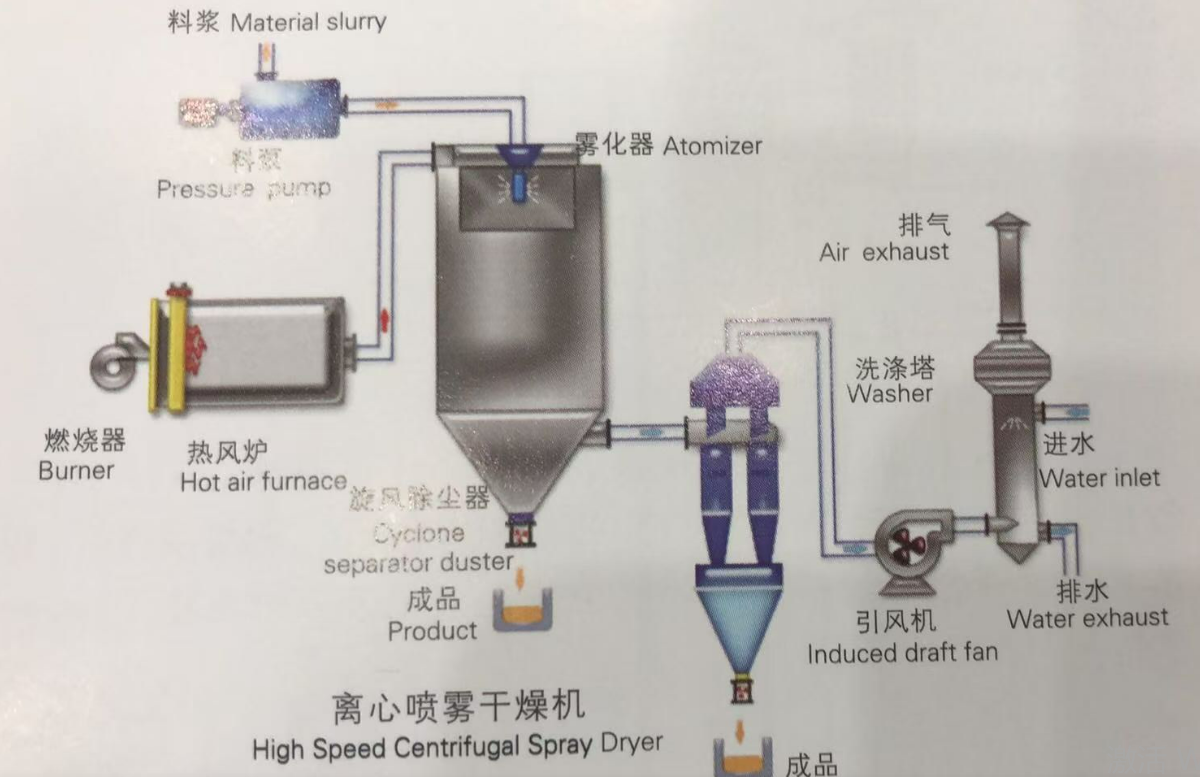

Spray drying transforms liquid whey concentrate into a fine, soluble powder by atomizing it into a hot air chamber. Energy-efficient spray dryers enhance this process through:
Technical Specifications
| Model | LPG-150 |
| Inlet Temperature | 140-350 Automatic Control |
| Outlet Temperature | 80-90 |
| Max. Moisture Evaporation Capacity (kg/h) | 150 |
| Centrifugal Spray Head Drive Type | Mechanical Transmission |
| Max. Speed (r.p.m) | 15000 |
| Spray Disc Diameter (mm) | 150 |
| Heat Source | Steam + Electricity; Fuel Oil, Natural Gas, Hot Air Furnaces |
| Max. Electric Heating Power (kW) | 99 |
| Overall Dimensions (L × W × H) (m) | 5.5×4×7 |
| Dry Powder Recovery (%) | ≥95 |
Note: The rate of moisture evaporation depends on the characteristics of the material, as well as the inlet air temperature and outlet temperature. When the outlet temperature is 90°C, the corresponding moisture evaporation curve is shown in the figure above (provided for selection reference). As products undergo continuous updates, relevant parameters are subject to change without prior notice.
Ordering Information
◎ Feedstock Name and Physical Properties: Solids content (or moisture content), viscosity, surface tension, and pH value.
◎ Properties of Dried Powder: Bulk density, permissible residual moisture content, particle size, and maximum permissible temperature.
◎ Production Capacity: Required output and daily operating hours.
◎ Available Energy Sources: Steam pressure and supply volume; electrical capacity; available supply of coal, oil, or gas.
◎ Control Requirements: Whether automatic control is required for inlet and outlet temperatures.
◎ Powder Collection Requirements: Whether a bag filter is required; environmental regulations regarding exhaust gas emissions.
◎ Other Special Requirements.
